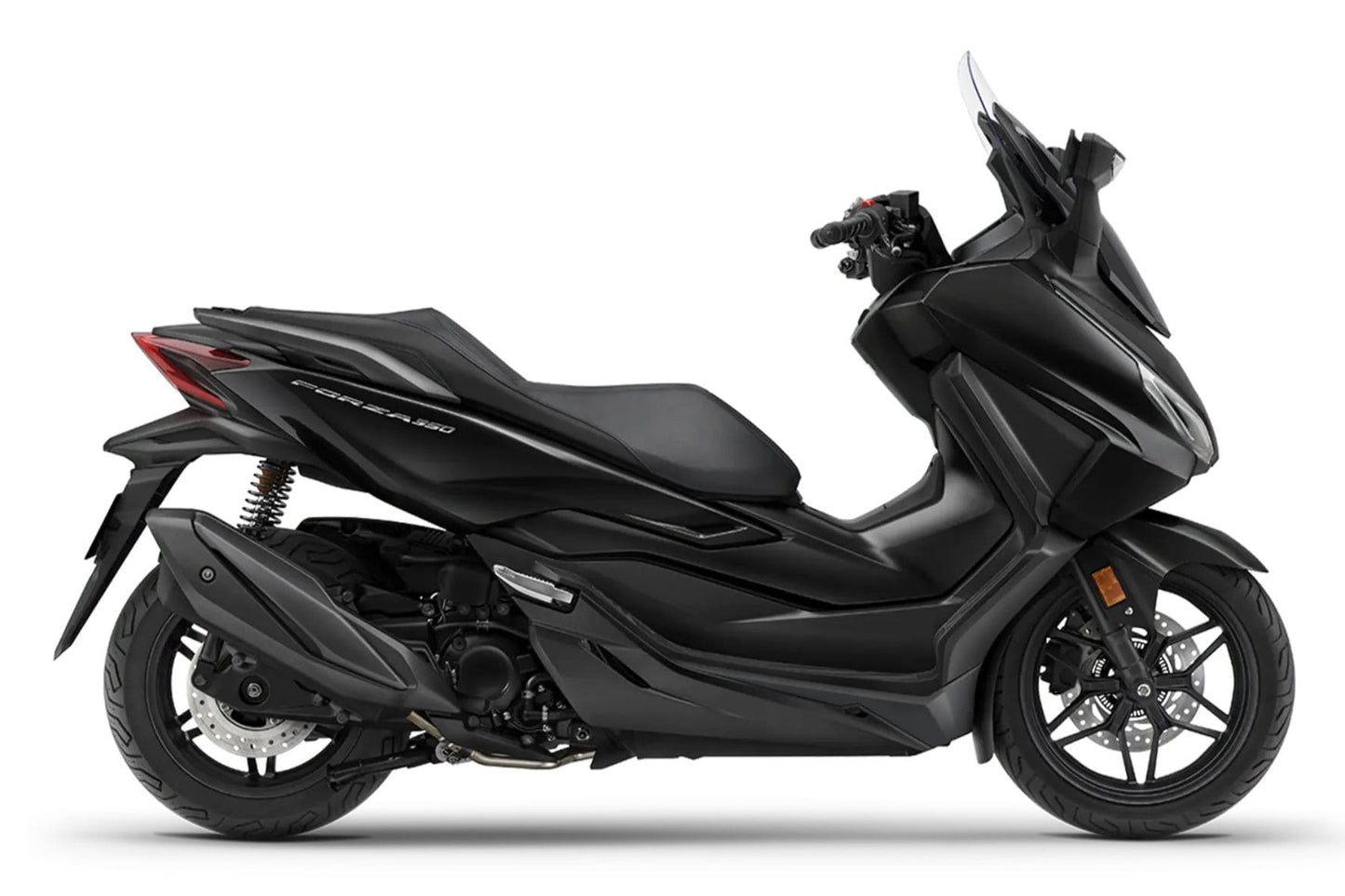

Honda Forza 350 2025

Diameter x stroke (mm)
77 mm x 70.8 mm

Fuel supply system
Programmed Gasoline Injection System (PGM-FI)

Compression ratio
10.5:1

Displacement (cm3)
330 cc

Engine type
4-stroke, single cylinder, SOHC, 4 valves, liquid cooled, eSP+

Maximum power
21.5kW (29HP) @ 7,500 rpm

Maximum torque
31.5 Nm @ 5,250 rpm

Start-up
Electric

C02 emissions (g/km of CO2)
79 g/km

Oil capacity (Liters)
1.8 L

Front braking system
1 disc Ø 256 mm, 2-piston Nissin caliper

Rear braking system
1 disc Ø 240 mm, single piston caliper with hydraulic drive

Front suspension
Telescopic fork Ø 33 mm, 100 mm travel

Rear suspension
Double cushioning

Front tire dimensions
120/70-15MC 56P

Rear tire dimensions
140/70-14MC 68P

Front wheel
15M/CX MT3.50, cast aluminum

Rear wheel
14M/CX MT4.00, cast aluminum

ABS system
2 Channels

Battery capacity (VAh)
12V/9.1 AH

Launch angle
26.5°

Dimensions (LxWxH) (mm)
2,145 mm x 754 mm x 1,360 mm

Frame type
Low column of tubular steel

Gasoline Consumption (Liters)
3.4L/100km

Fuel capacity
11.7 L

Ground clearance (mm)
145 mm

Seat height (mm)
780 mm

Advance (mm)
91 mm

Wheelbase (mm)
1,510 mm

Weight in running order (kg)
186 kg

Clutch
Automatic centrifugal clutch, dry

Final transmission
V-Belt

Transmission type
CVT

Headlight
LED

Instrument panel
5 inch multi-information TFT panel

Rear light
LED

Connectivity
RoadSync

USB socket
USB-C
